Mrcool Diy 23,000 Btu 2-ton 1-zone 20.5 Seer Ductless Mini-split Ac And Heat Pump With 24k & 25ft Line
UPC #DIY24HPWM23
Mr Cool
Description
About This Product

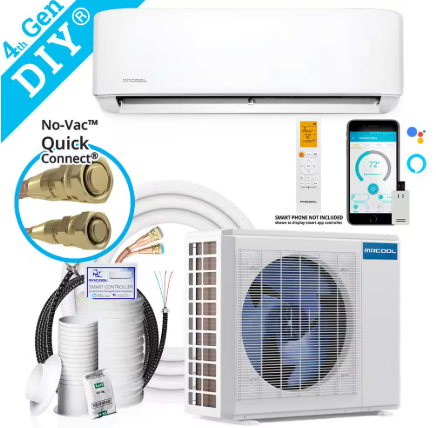

The MRCOOL 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump is an all in one system that seamlessly combines efficiency, durability, and simplicity. This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat and cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser. All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MRCOOL Pre-Charged Quick-Connect Line Set included with the system. Not only is this system capable of delivering exceptional performance, it is also equipped with up to 6 operating modes, which include auto, heat, cool, fan-only, dry (dehumidification), and sleep. The system's Follow Me Feature allows the system to adjust the room temperature based on wherever you're standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind.
Highlights
- Up to 20.5 SEER
- Gold fin condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
- Variable-speed DC inverter compressor technology cuts operating costs
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty, register for limited lifetime compressor warranty
Dimensions
| Air handler depth (in.) | 8.9 | Air handler height (in.) | 13.19 |
|---|---|---|---|
| Air handler width (in.) | 42.52 | Condenser depth (in.) | 16.14 |
| Condenser height (in.) | 31.89 | Condenser width (in.) | 37.24 |
Details
| Air direction/circulation | 4-way | Air Handler BTU | 24000 BTU |
|---|---|---|---|
| Air handler weight (lb.) | 35.27 | Amperage (A) | 35 A |
| BTU Cooling Rating | 23000 BTU | BTU Heat Rating | 24000 BTU |
| Color Family | White | Color/Finish | White |
| Condenser weight (lb.) | 125.22 | Coverage Area (sq. ft.) | 1000 |
| Decibel (Sound) Rating | 49 dBA | Decibel Rating | 49 dBA |
| Filter Type | Washable | Included | Heater, Mounting Hardware, Precharged Line Set, Remote Control, Self-diagnostic tools |
| Line Set Length (Ft.) | 25 ft | Mini Split Features | Auto cool, Automatic shutoff, Defrost, Fan only option, Mobile App, Overload protection, Sleep setting, Timer, Wifi |
| Minimum Outdoor Temperature (F) | -13 | Mount Location | Wall Mount |
| Number of cool settings | 3 | Number of Fan Speeds | Variable |
| Number of Tons | 2 ton | Pack Size | 1 |
| Power Options | Hardwired | Remote Access | Remote Access |
| Requires Hub? | No Hub Required | Returnable | 90-Day |
| Smart Home | Smart Home Enabled | Smart Home Protocol | Wi-Fi |
| Voice Control Hub Required | No Hub Required for Voice Control | Voltage (v) | 208/230v |
| Wattage (watts) | Not Measured | Works With | Alexa, Alexa, Google, Google Assistant |
| Zone Capacity | 1 Zone |
Warranty / Certifications
| Certifications and Listings | AHRI Certified, CSA Certified, CSA Listed, Energy Star | Manufacturer Warranty | 5-year Parts/7-year Compressor |
|---|---|---|---|
| Seasonal Energy Efficiency Ratio (SEER) | 20.5 |
